Description

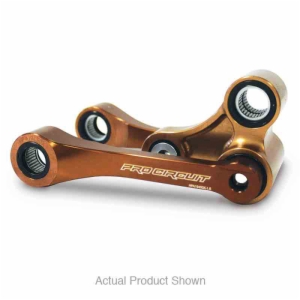

CRF450L/RL'19-26 - Pro Circuit Linkage System — Pro Circuit linkage for CRF450L/RL 2019-2026 changes the rear progression for a plusher initial stroke and firmer deeper-stroke support.
Why This Product
A practical, bike-focused option for the CRF450L/RL, chosen to solve a specific setup, service or riding need without adding unnecessary complexity.
Fitment review: Product name/fitment information run through 2026, while the Pro Circuit product information specifically states 2019-2025 CRF450X/L. No fitment information has been changed.
Setup note: Source recommends increasing rear spring rate by about 0.2 kg/mm.
Product Details
The new Pro Circuit linkage system for the 2019-2025 CRF450X/L brings the bike's handling performance to an entirely new level. The stock OEM linkage system for these newer models tends to be harsh and stiff at the beginning of the stroke and gets softer as the rear wheel goes deeper into the stroke. With the new Pro Circuit linkage system, it's the complete opposite. The Pro Circuit CRF450X linkage system is plusher at the beginning and stiffens up as the rear wheel goes deeper into the stroke. This adjustment lessens the need for stiffer high-speed valving, which can cause the rear to feel harsh and deflective. A considerable amount of research and testing for this new linkage system has resulted in a more true-to-weight spring rate to reach the ultimate sweet spot in handling for your new CRF450X/L. Ultimately, the new linkage creates a plush feel while increasing traction.
Pro Circuit Length is 141.6 mm
Note: An increase in spring rate is required. Usually a 0.2 kg/mm rate increase is recommended. (Rate example: 5.4 goes to 5.6).
Fitment
Honda CRF450L/RL 2019-2026. Verify exact model and year before ordering.
Setup Note
Pro Circuit states the linkage is 141.6mm long and usually requires roughly a 0.2 kg/mm increase in rear spring rate.
- Brand: Pro Circuit
-
