Description

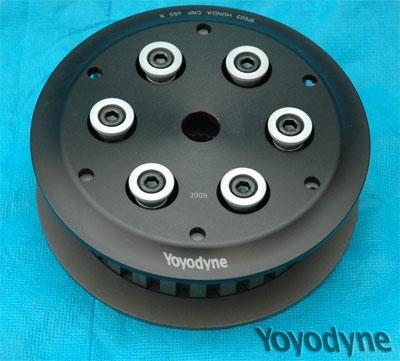

Slipper clutch for Flat Track and Supermoto
Can be used on Honda that use part number 22120-MEY-670
Installation Instructions:
17503 Antihopping slipper clutch CRF450X – mounting instructions
Congratulations, you bought one of best clutch systems for your CRF450X.
This clutch should be installed by an experienced Honda workshop, or mechanic.
- Read this instructions with photos before you start. Check if the set includes all parts.
- Remove the old clutch drum ( according Honda workshop manual ), clean the threads on the shaft and big nut from old glue with brake cleaner.
- Put shim ( STD ) between basket and drum, when you replace it.
- Install the pre mounted slipper drum.
- Put the STD steel washer on shaft.
- Tighten the big nut ( STD ) with torque 80Nm and secure it with Loctite No. 620. (RED)
- This slipper clutch is designed for using STD clutch plates. Mount them in usual position.
- Install the pressure plate.
- Put STD clutch springs in position as before, put spring kit-retainers, Tighten all with M6 bolts.
Check the clearance between the pressure plate and the clutch hub via the small holes in the pressure plate. Minimum clearance is 0.3 mm.
- Every time use new clutch cover gasket.
- Mount case cover according to Honda workshop manual.
LIST OF PARTS
1 pc. clutch drum pre mounted
1 pc. pressure plate
6 pcs. spring retainers
6 pcs. bolt M6
- Brand: Yoyodyne
-
