NOTE: This product is an electronic and custom build to order product and as such is not eligible for return. Your order of this product is your acknowledgement and acceptance of this ineligibility for return. The AMG received a body update for 2025, 2nd image shows the new generation design. This new design will not fit the older dashboard molds.

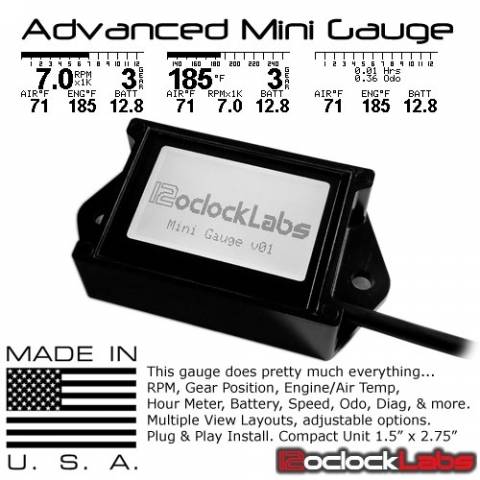

CRF450L Advanced Mini Gauge
The most advanced motorcycle mini accessory gauge on the market today, this gauge has all the major features of multiple gauges packed into a single compact unit, it even has a basic sensor diagnostic mode to view common sensor data. Multiple screen layouts to choose from. Feature packed and easy to use. No internal battery to change ever, does not rely on the motorcycle battery to save data. All data is saved to internal wear leveling non-volatile memory, our wear leveling inside the device is estimated to provide over 100 years of data saving without an internal battery and was designed to outlast your motorcycle.
OPTIONS:
SPEED/GPI ADAPTER: The CRF450L ECU does not provide speed or gear position. To provide this information to the Mini Gauge you will need to select one of the two optional Speed/GPI adapters. The SpeedoDRD Adapter version provides the same functionally as the Standard Adapter while adding the ability to calibrate speed/odometer for non-stock wheel/tire sizes. NOTE: If you already have the CRF450L/RL - SpeedoDRD Calibrator & ABS Adapter you do not need either adapter option. In this case, select the "No, Thanks" option.
VERSION: Select the correct version for the ECU you have installed.
PLEASE READ: The Mini Gauge will work with any INLINE fuel controller kit. However, remember the Mini Gauge talks to the ECU through the diagnostic port, so if you replace the stock ECU with an aftermarket ECU, make sure your aftermarket ECU implements the Honda diagnostics port functions, or else any Honda diagnostic tools and the mini gauge will not function. It has been reported to us that the CRF450L vortex ecu does not implement the diagnostic port functions. Make sure to verify with your aftermarket ECU company what functions are implemented.
Features
- Plug and Play
- RPM with top bar-graph capability
- Gear Position Indicator (requires adapter)
- Engine Temperature with top bar-graph capability
- Air Intake Temperature
- Hour Meter with edit capability up to 999999.99 hrs
- Odometer with edit capability up to 999999.99 mi or km
- Battery Voltage
- Speed with calibration capability (requires adapter)
- Basic sensor diagnostics (MAP, TPS, INJ, etc)
- No internal battery to ever replace
- No exposed LCD glass, 3mm thick protective plexiglass covers the LCD.
- Weatherproof design
- Made In the USA
- (Typically ships in 5-10 business days)
- Brand: 12oClockLabs
-
